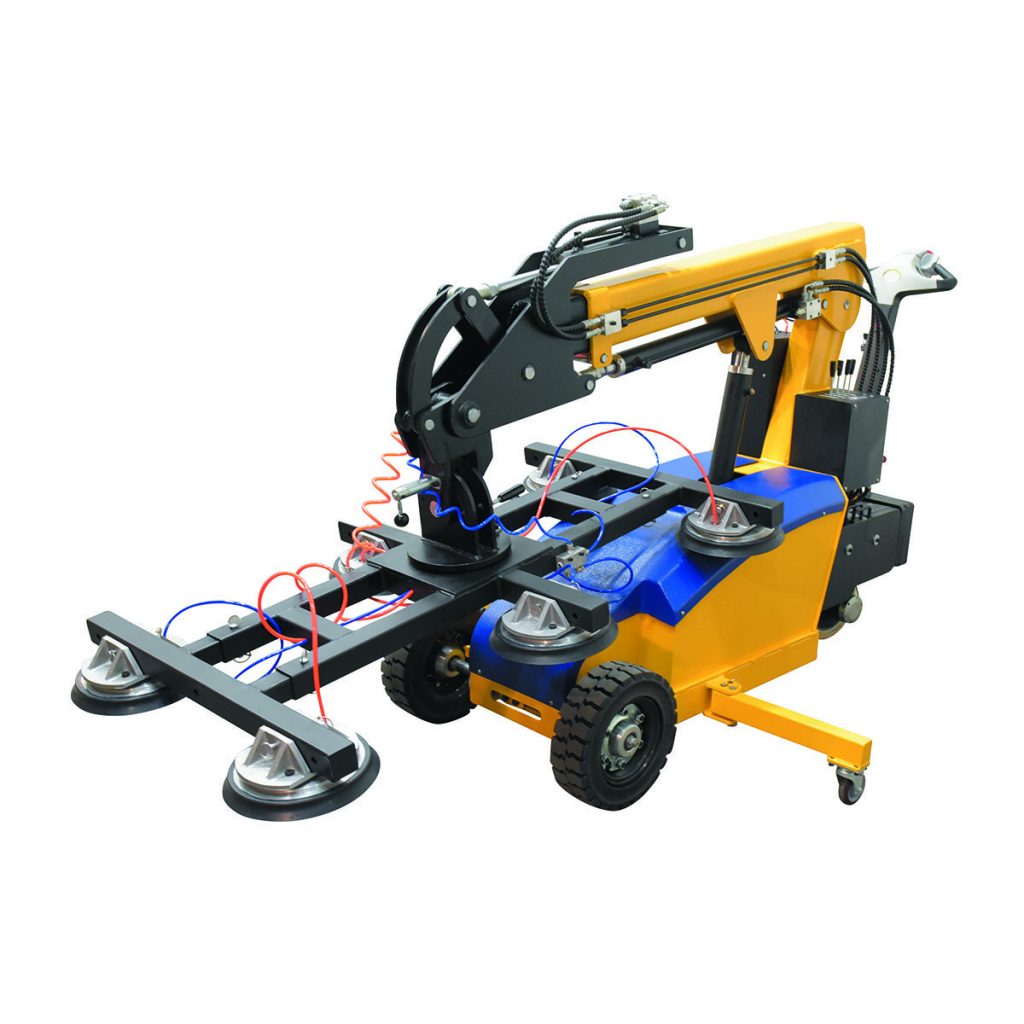

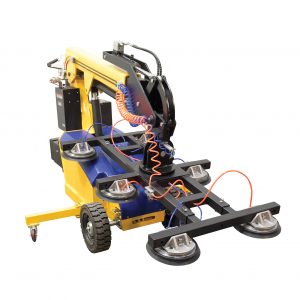

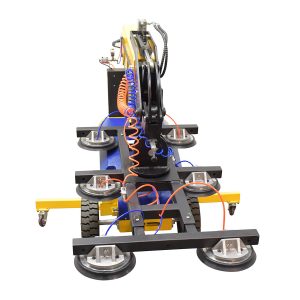

Electric Vacuum Lifter–Model: GL600

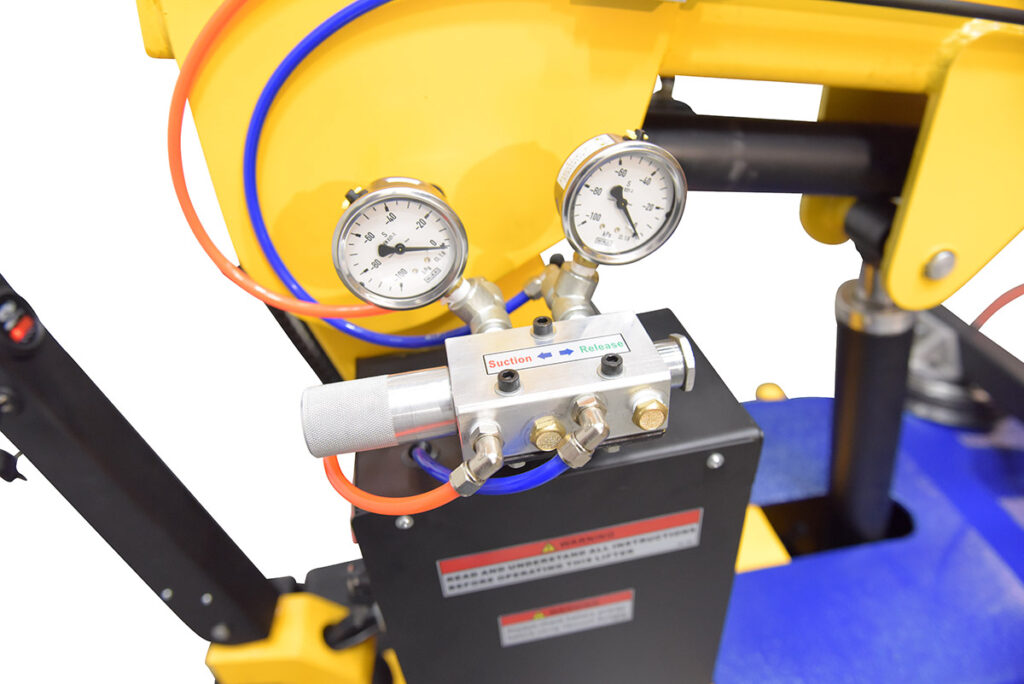

A vacuum material lift is a great way to safely transfer large items. With the six suction cups widely spaced the lifter can be positioned in a variety of ways to best be utilized. An ergonomic walk behind steering handle allows the user to have quick maneuverability. Vacuum controls are placed at the rear of the unit to give the user complete visibility of the unit and of the item being positioned. Vacuum lifting arm is telescoping and adjustable to fit a wide range of areas. Rubber wheels are perfect for minimizing jostling while traversing a variety of surfaces. Powder coated steel construction for built in added toughness.
- Battery powered for consistent strength
- Hand controlled for precise positioning.
- Long telescoping reach

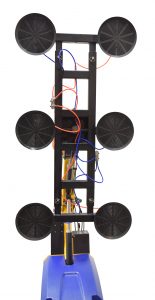

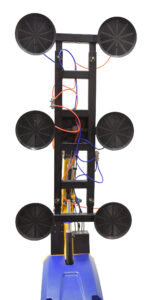

- Six suction cup pads
Electric Vacuum Lifter-GL600 Model: GL600
- Capacity: 600kg(retracted)&300kg(extended)
- Lifting height: 3700mm
- Height Forward Extension:610mm
- Electric hydraulic tilting forwards & backwards from vertical to horizontal thru: 180deg
- Manual rotating: 360deg
- Suction cups standard qty: 6 pieces

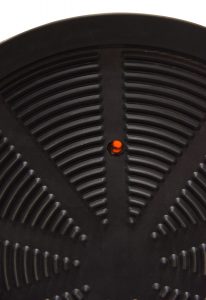

- Suction cups size: φ300mm*6 pieces
- Battery: 2*12V/120Ah
- Charger: 24V/15A
- Drive motor: 24V/900W
- Lift motor: 24V/2000W
- Drive speed(with or without load): 3.5km/4.5km/h
- Lift speed(with or without load): 13mm/18mm/s
- Down speed(with load): 19mm/s
- Down speed(without load): adjustable based on customer’s requirements.
- Gradeability(without load): 10%
- Overall Length: 2420mm
- Overall Width: 850mm
- Overall Height: 1620mm
- Net Weight: 1000kg
- Packing size: 2700*950*2000mm
- Gross Weight: 1250kg
