Electric vacuum lifter

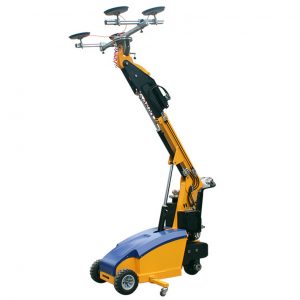

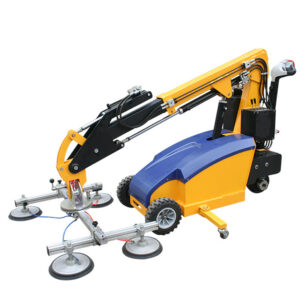

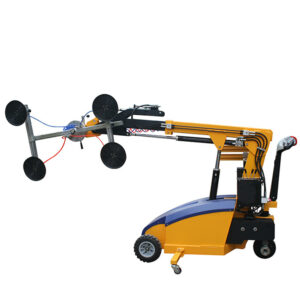

Electric Vacuum lifter-GL350 for handling and fitting glass sheets etc inside/outside buildings.
The vacuum lifter is designed with automatic pressure control and dual safety circuits to avoid system failure.
Ideal for loading & unloading transporting, rotating and installation, and with small width to access into doors.
Easy for operation, with the following functions:
Self-propelled drive.
Electric hydraulic lift and extensions to Lift Height 3500 mm Forward Extension 610 mm.
Electric hydraulic tilting forwards & backwards from vertical to horizontal thru 180 deg.
Manual rotating 360 deg.
Electric Vacuum Lifter-GL350 Model: GL350
- Capacity: 350kg
- Lifting height:3500mm
- Height Forward Extension:610mm
- Electric hydraulic tilting forwards & backwards from vertical to horizontal thru: 180deg
- Manual rotating: 360deg
- Suction cups standard qty: 4 pieces
- Suction cups size: φ250/300mm*4 pieces
- Battery: 2x12V/100Ah
- Charger: 24V/15A
- Drive motor: 24V/600W
- Lift motor: 24V/2000W
- Drive speed(with or without load): 3km/4km/h
- Lift speed(with or without load): 13mm/18mm/s
- Down speed(with load): 19mm/s
- Down speed(without load): adjustable based on customer’s requirements.
- Gradeability(without load): 5%
- Overall Length: 1990mm
- Overall Width: 750mm
- Overall Height: 1500mm
- Net Weight: 850kg
- Packing size: 2500*850*1620mm
- Gross Weight: 1000kg
