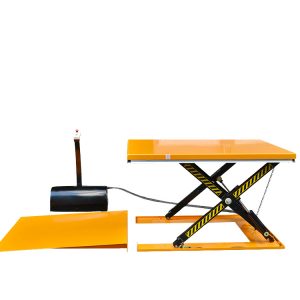

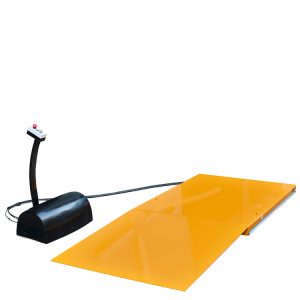

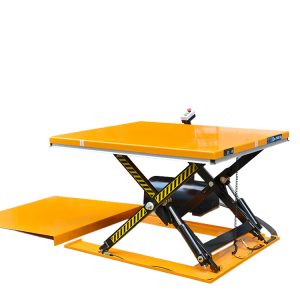

Low Position Lift Table—HY
Low Position Lift Table—HY
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.
- Remote power pack with pedestal and controls, pretected to IP54.

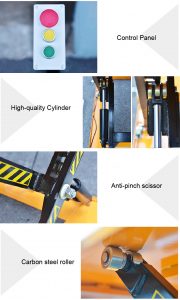

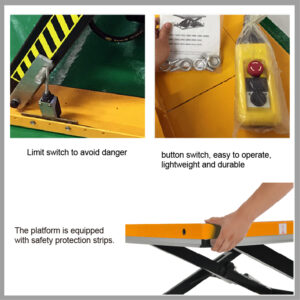

- 24V control box with UP and DOWN buttons and emergency stop.

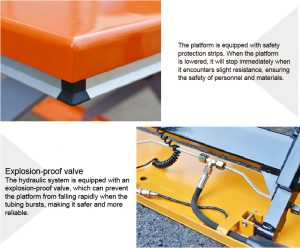

- Hose burst safety valve to stop the lift table lowering in case of hose breakage.

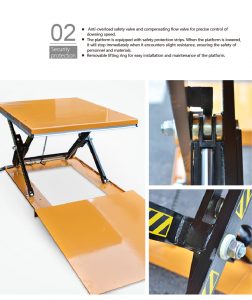

- Removable lifting eyes to facilitate handing and installation of the lift table.
| Model No. | Capacity (kg) | Platform Size LXW(mm) | Base frame size （mm） | Min. Height (mm) | Max. Height (mm) | Lifting Time (second) | Power pack | Net weight(kg) |
|---|---|---|---|---|---|---|---|---|
| HY1001 | 1000 | 1450×1140 | 1325×1074 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 357 |
| HY1002 | 1000 | 1600×1140 | 1325×1074 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 364 |
| HY1003 | 1000 | 1450×800 | 1325×734 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 326 |
| HY1004 | 1000 | 1600×800 | 1325×734 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 332 |
| HY1005 | 1000 | 1600×1000 | 1325×734 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 352 |
| HY1501 | 1500 | 1600×800 | 1325×734 | 105 | 870 | 30 | 380V/50Hz, AC2.2kw | 302 |
| HY1502 | 1500 | 1600×1000 | 1325×734 | 105 | 870 | 30 | 380V/50Hz, AC2.2kw | 401 |
| HY1503 | 1500 | 1600×1200 | 1325×734 | 105 | 870 | 30 | 380V/50Hz, AC2.2kw | 415 |
| HY2001 | 2000 | 1600×1200 | 1427×1114 | 105 | 870 | 35 | 380V/50Hz, AC2.2kw | 419 |
| HY2002 | 2000 | 1600×1000 | 1427×734 | 105 | 870 | 35 | 380V/50Hz, AC2.2kw | 405 |
