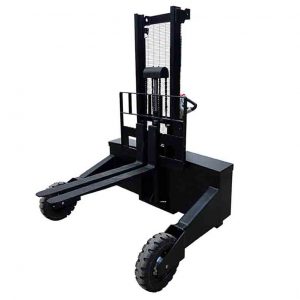

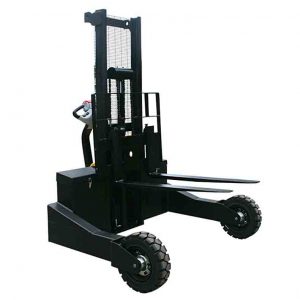

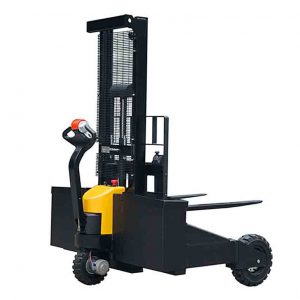

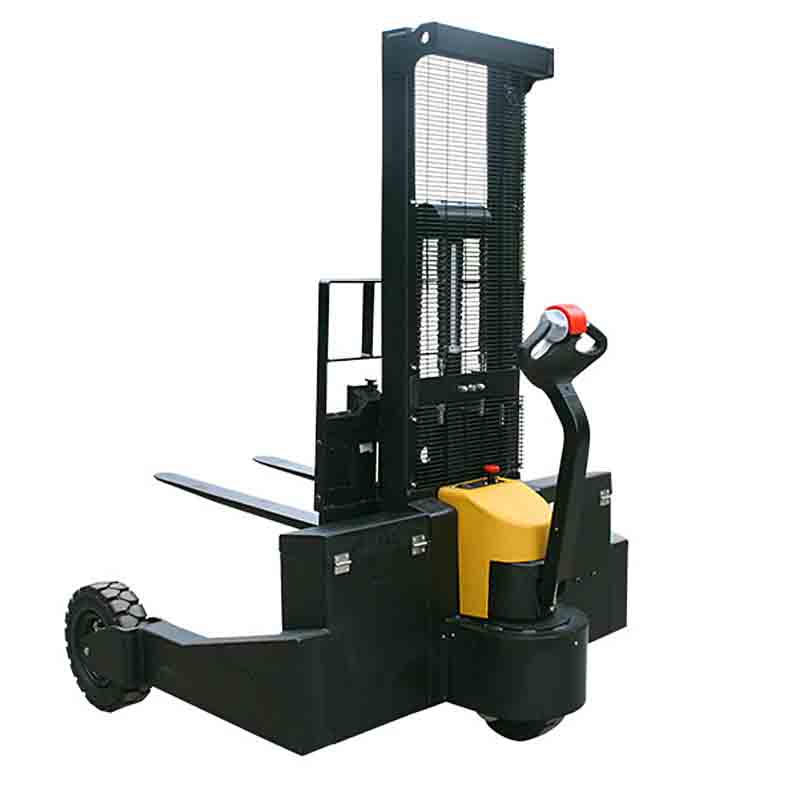

Rough terrain stacker
When goods have to be transferred over uneven and rough surfaces, look no further than the electric powered rough terrain stacker. With its large front and back rubber tires this machine can easily be used both indoors and out. A multi-function driving handle features an infinite speed adjustment, raise/lower controls, switch for sounding the horn and an emergency reverse function. Forks are adjustable to precisely fit what it being maneuvered.
| Model Number | ES1016 | ES1516 | |
|---|---|---|---|
| Drive type | Walkie | Walkie | |
| Load capacity | kg | 1000 | 1500 |
| Lifting height | mm | 1600 | 1600 |
| Load center | mm | 500 | 600 |
| Ground clearance | mm | 50 | 50 |
| Steering wheel | Φ300×125 | Φ300×125 | |
| Bearing wheel | 2xΦ406×110 | 2xΦ406×110 | |
| Drive motor | kw | DC1.2 | AC1.5 |
| Lift motor | kw | 2 | 2 |
| Battery | V/Ah | 2×12/70 | 2×12/70 |
| Charger | V/A | 10V/24A | 10V/24A |
| Travel brake | electromagnetism | electromagnetism | |
| Lift up speed w/load | mm/s | 13 | 13 |
| Lift up speed w/o load | mm/s | 25 | 25 |
| Drive speed w/o load | km/h | 4.5 | 4.5 |
| Drive speed w/load | km/h | 3.5 | 3.5 |
| Gradeability w/load | % | 10 | 10 |
| Gradeability w/o load | % | 5 | 5 |
| Wheels | Solid rubber wheel | Solid rubber wheel | |
| Overall Dimension | mm | 1720x1575x2060 | 1780x1575x2060 |
| Fork length | mm | 1070 | 1070 |
| Fork outside width | mm | 840 | 840 |
| Turning radius | mm | 1750 | 1750 |
| Net weight | kg | 750 | 785 |
