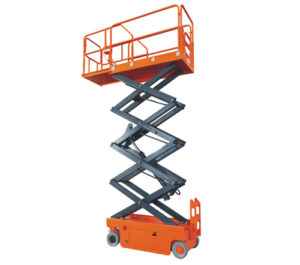

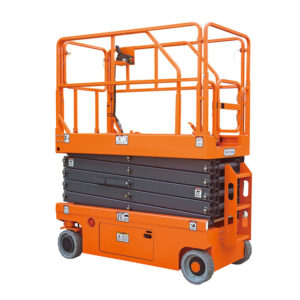

Our electric scissor lift platforms are aerial work platforms which can automatically move(upward and downward, forward and backward) and turn, ideal for long-time aerial moving operations. No extra supporting leg is needed. It is mainly used in the installation, maintenance and cleaning of high-altitude equipment in stores, communications, airports, exhibition centers, supermarkets, factories, subway stations and other places; it can also be used for the maintenance of lifting equipment and outdoor power facilities.
Main specifications
Model Number | PT6 | PT8 | |
---|---|---|---|
Max. Platform height | mm | 6000 | 8000 |
Max. Machine height | mm | 7100 | 9100 |
Min. Platform height | mm | 1080 | 1200 |
Ground Clearance | mm | 20 | 20 |
Lift Rated Capacity | kg | 300 | 300 |
Platform Extend Capacity | kg | 100 | 100 |
Platform Size | mm | 1880×900 | 1880×900 |
Platform Extend Length | mm | 900 | 900 |
Max. Drive Speed (platform stowed) | km/h | 3~4 | 3~4 |
Max. Drive Speed (platform elevated) | km/h | 0.6~1 | 0.6~1 |
Min. turning Radius | mm | 2000 | 2000 |
Max. Climbing Capacity | % | 10~15 | 10~15 |
Driving Wheel size | mm | Φ305×100 | Φ305×100 |
Directional Wheel size | in | Φ305×100 | Φ305×100 |
Driving Motor | v/kw | 2×24/0.5 | 2×24/0.5 |
Lifting Motor | v/kw | 24/2.2 | 24/2.2 |
Battery | v/Ah | 2×12/150 | 2×12/150 |
Charger | v/A | 24/15 | 24/15 |
Pothole Protection System | Mechanical control | Mechanical control | |
Overall Length | mm | 2050 | 2050 |
Overall Width | mm | 900 | 900 |
Overall Height | mm | 2150 | 2270 |
Overall Net Weight | kg | 1500 | 1700 |
