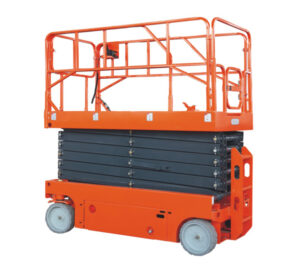

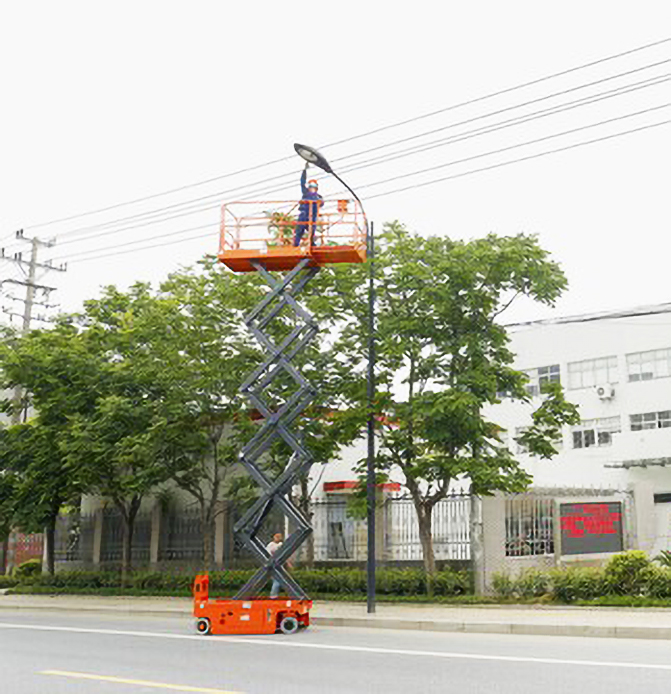

Our electric scissor lift platforms are aerial work platforms which can automatically move(upward and downward, forward and backward) and turn, ideal for long-time aerial moving operations. No extra supporting leg is needed. It is mainly used in the installation, maintenance and cleaning of high-altitude equipment in stores, communications, airports, exhibition centers, supermarkets, factories, subway stations and other places; it can also be used for the maintenance of lifting equipment and outdoor power facilities.
Main specifications
Model Number | PT06 | PT08 | PT10 | PT12 | PT14 | |
---|---|---|---|---|---|---|
Maximum working height | mm | 8000 | 10000 | 12000 | 13800 | 158000 |
Maximum platform height | mm | 6000 | 8000 | 10000 | 11800 | 13800 |
Lifting capacity | kg | 300 | 300 | 300 | 300 | 230 |
Lifting extend capacity | kg | 113 | 113 | 113 | 100 | 100 |
Folding maximum height (guardrail unfolding) | mm | 2150 | 2275 | 2400 | 2525 | 2590 |
Folding maximum height (guardrail removed) | mm | 1190 | 1315 | 1440 | 1565 | 2050 |
Whole length | mm | 2400 | 2400 | 2400 | 2400 | 2840 |
Whole width | mm | 1150 | 1150 | 1150 | 1150 | 1390 |
Platform size | mm | 2270×1150 | 2270×1150 | 2270×1150 | 2270×1150 | 2650×1130 |
Platform extend size | mm | 900 | 900 | 900 | 900 | 900 |
Minimum ground clearance (folding) | mm | 110 | 110 | 110 | 110 | 100 |
Minimum ground clearance (rising) | mm | 20 | 20 | 20 | 20 | 20 |
Wheelbase | mm | 1850 | 1850 | 1850 | 1850 | 2050 |
Minimum turn radius (inner wheel) | mm | 0 | 0 | 0 | 0 | 0 |
Minimum turn radius (outer wheel) | mm | 2100 | 2100 | 2100 | 2100 | 2700 |
Power source | v/kw | 44279 | 44279 | 44279 | 44279 | 44279 |
Running speed (folding) | km/h | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
Running speed (rising) | km/h | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Rising/falling speed | sec | 70/80 | 70/80 | 70/80 | 70/80 | 70/80 |
Battery | V/Ah | 4×6/210 | 4×6/210 | 4×6/210 | 4×6/210 | 4×6/300 |
Charger | V/A | 24/25 | 24/25 | 24/25 | 24/25 | 24/30 |
Maximum climbing ability | % | 20 | 20 | 20 | 20 | 20 |
Maximum working allowable angel | / | 2-3° | 2-3° | 2-3° | 2-3° | 2-3° |

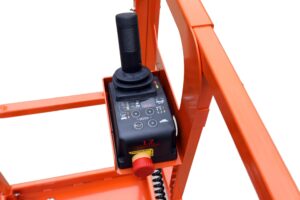

Way of control | / | Electro-hydraulic proportion control | ||||
Driver | / | Double front-wheel | ||||
Hydraulic drive | / | Double rear-wheel | ||||
Wheel size (stuffed & no mark) | / | Φ381×127 | Φ381×127 | Φ381×127 | Φ381×127 | Φ381×127 |
Overall Net Weight | kg | 1900 | 2080 | 2490 | 2760 | 3320 |
