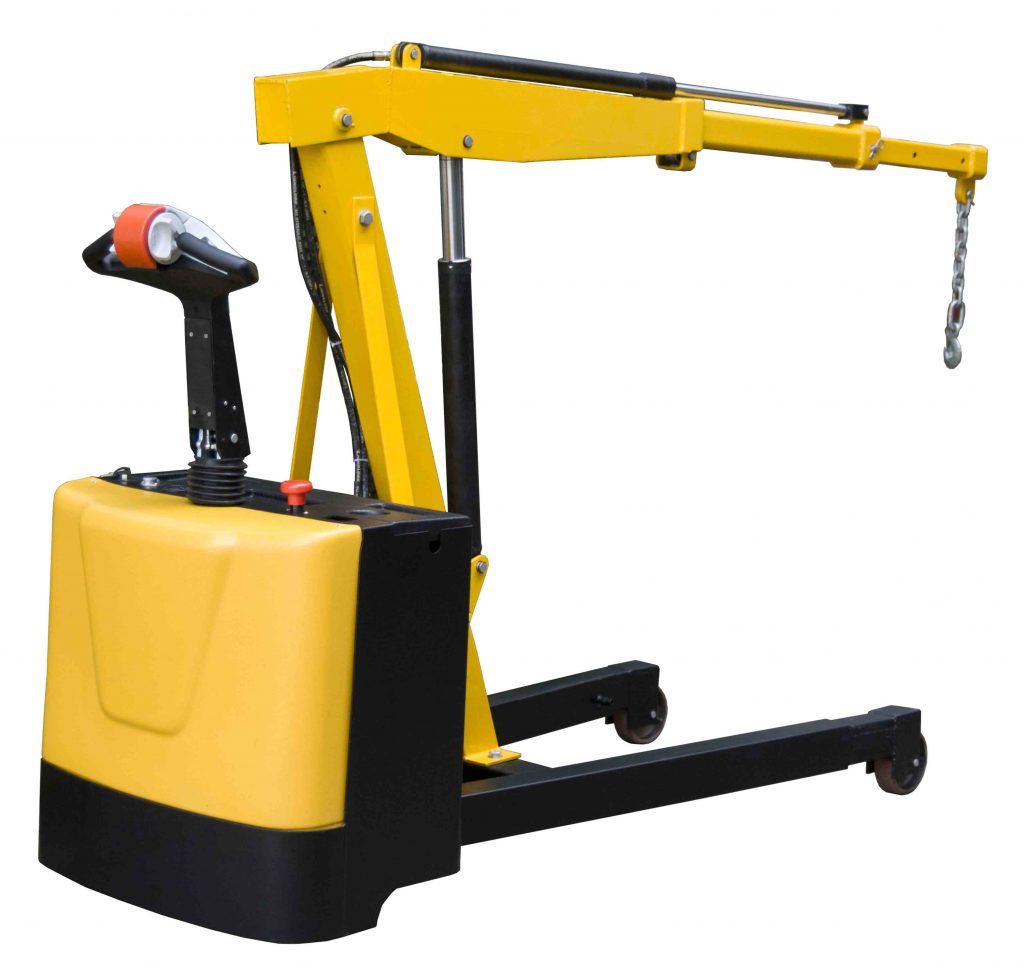

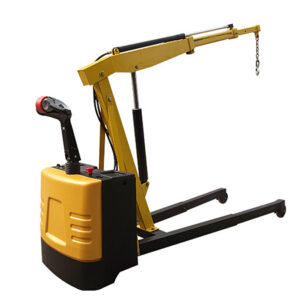

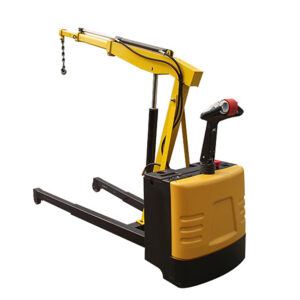

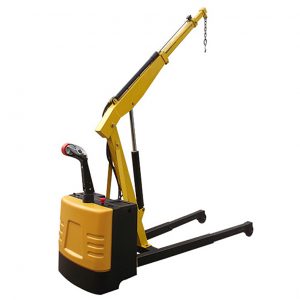

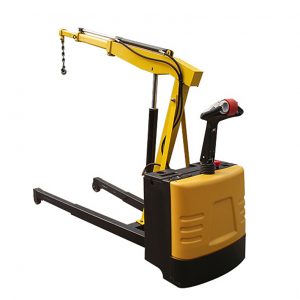

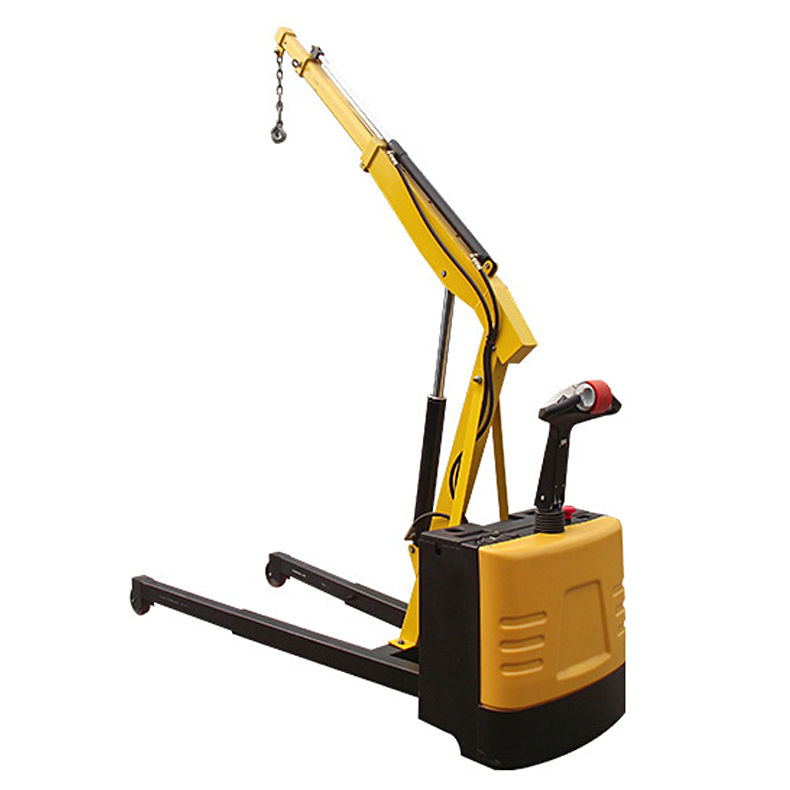

Electric floor crane(Fixed fork foot)
Electric floor crane (power hoist & power/manual in/out boom) for moving loads quickly, easily, and safely.
Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/
lower controls, proprietary safety-enhancing emergency reverse function, and horn.
An electromagnetic disc brake with automatic dead-man feature, activates when user releases the handle.
24V DC drive and lift motor.
Two 12V,100/Ah lead acid dry batteries, integral battery charger, and battery level gauge.
3-4 hour operation at full charge – 8 hours when used intermittently.
PU steer and load wheels.
Rigid hook with safety latch.
Adjustable length legs
| Model | Unit | MS12C |
|---|---|---|
| Max. Load Capacity(Retracted) | kg | 1200kgs |
| Safe Load Capacity(Extended) | kg | 300kgs |
| The first stretch distance | mm | 610 |
| The second stretch distance | mm | 200 |
| Max. Height of hook | mm | 3350 |
| Min. Height of hook | mm | 1190 |
| Max. Handle height | mm | 1270 |
| Driving wheel size | mm | Φ254*80 |
| Rear wheel size | mm | Φ150*50*2pcs |
| Drive Motor | V/W | 24/700 |
| Lift Motor | V/W | 24/2000 |
| Drive speed(with/without load) | km/h | 3.5/4.5 |
| Lift speed(with load) | mm/s | 35 |
| Gradeability(with/without load) | % | 5~10 |
| Battery | V/Ah | 2*12/120 |
| Charger | V/Ah | 24/15 |
| Overall Length | mm | 2020 |
| Overall Width | mm | 760 |
| Overall Height | mm | 1600 |
| Net Weight | kg | 420 |
