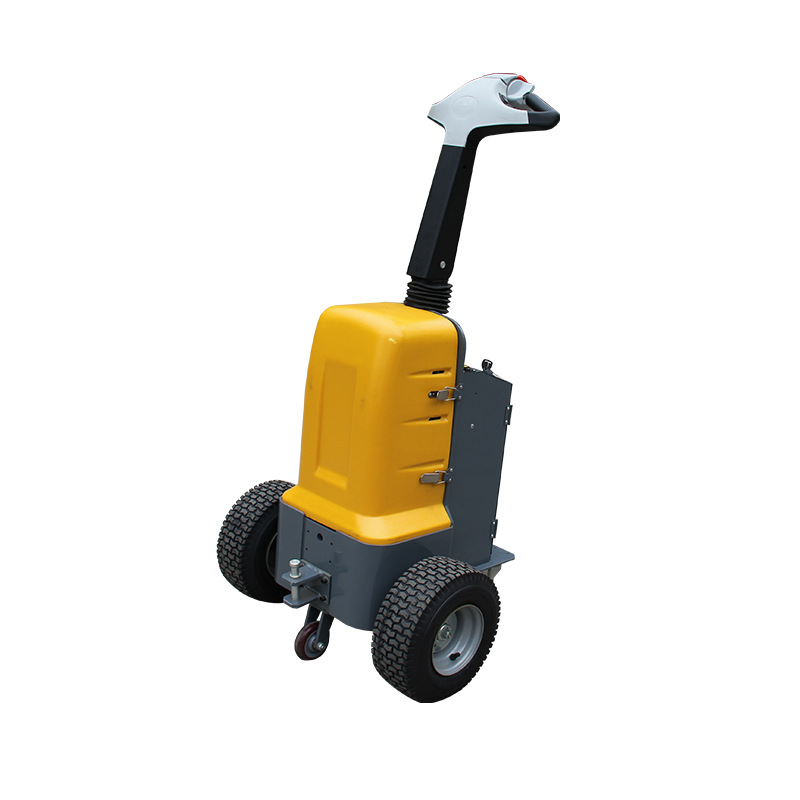

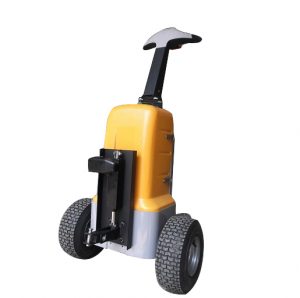

Electric Tow Tractor-TTM

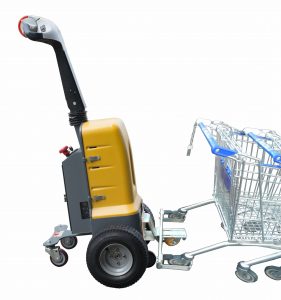

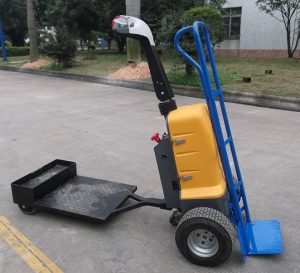

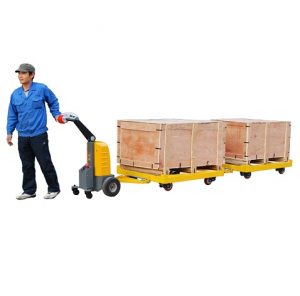

Welcome to use our TT-M Series Mini Electric Tow Tractor. The mini Tractor is designed for a durable, reliable and easy operation. It could be easily used in any place such as airport, factory, warehouse, supermarket and distribution center, saving energy and time without any pollution to working environment.

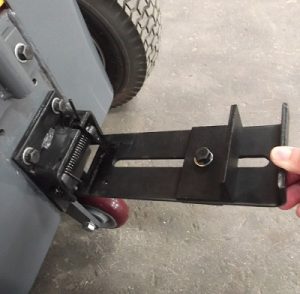

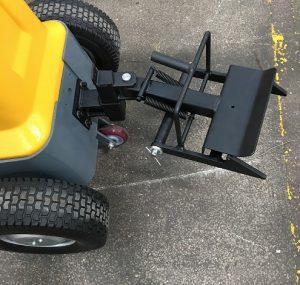

The machine is usually assembled with standard hitch.There are many different hitch are available for difference application. Contact for more detail.
| Model Number | TT05M | TT10M | TT15M |
|---|---|---|---|
| Capacity | 500kg | 1000kg | 1500kg |
| Battery | 2x12V/40Ah | 2x12V/70Ah | 3x12V/70Ah |
| Charger | 24V/6A | 24V/8A | 36V/10A |
| Drive motor | 24V/400W | 24V/800W | 36V/1200W |
| Drive wheel | Φ260x90mm | Φ300x115mm | Φ300x115mm |
| Rear wheel | 75x32mm | Φ100x32mm | Φ100x32mm |
| Front sport wheel | —– | 100x32mm | 100x32mm |
| Unload speed | 6km/h | 6km/h | 6km/h |
| Load speed | 5km/h | 5km/h | 5km/h |
| Load gradability | 5% | 5% | 5% |
| Unload gradability | 10% | 10% | 10% |
| Weight | 90kg | 120kg | 180kg |
